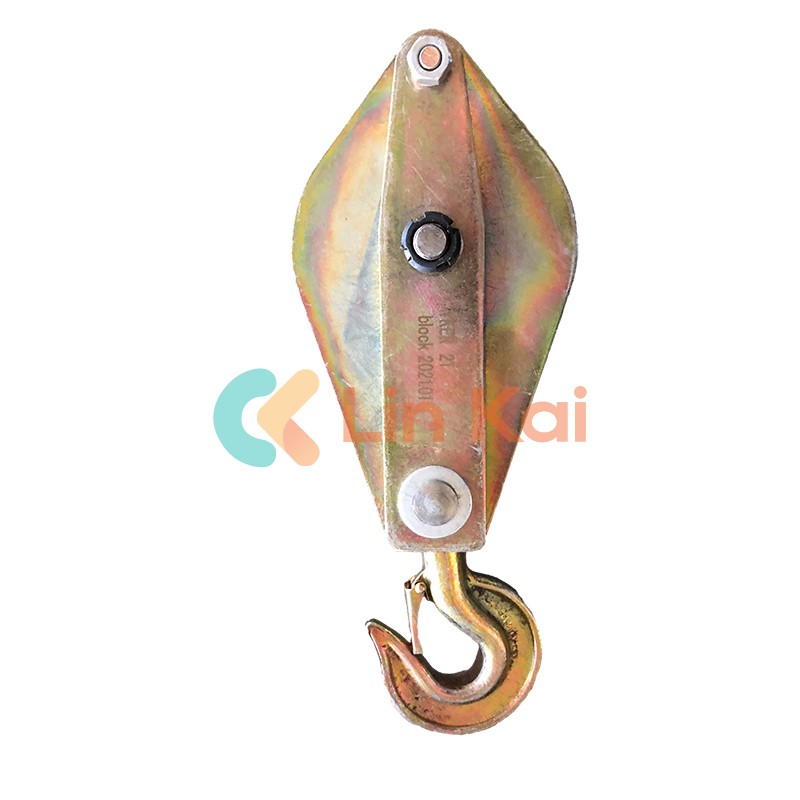

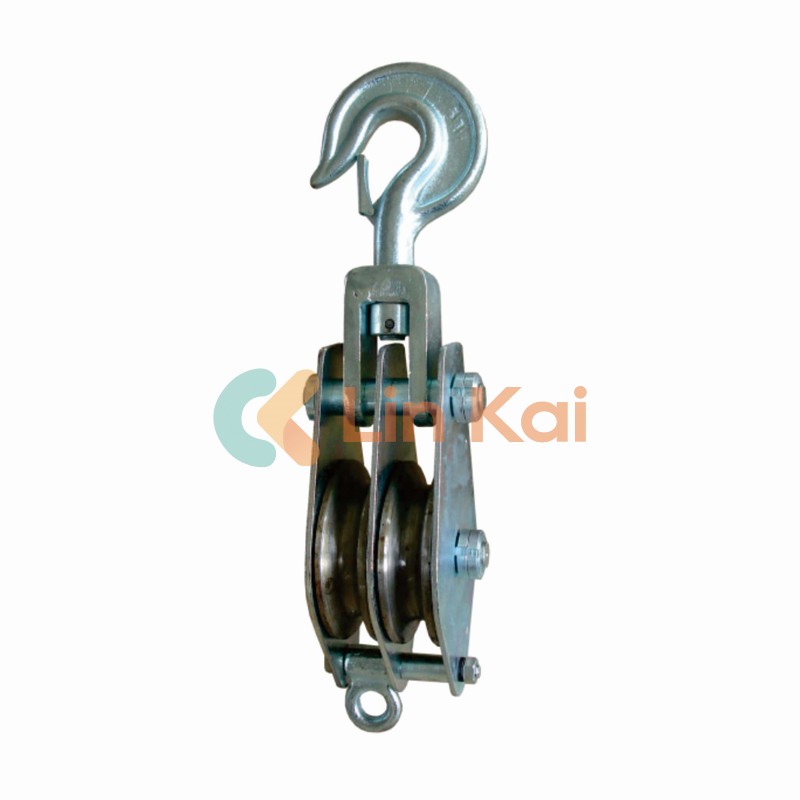

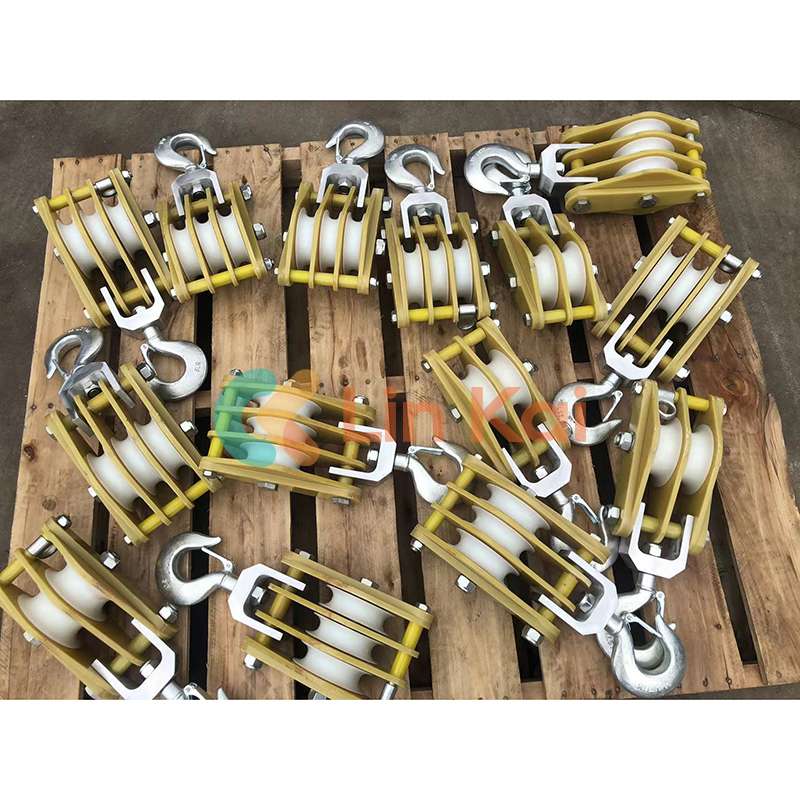

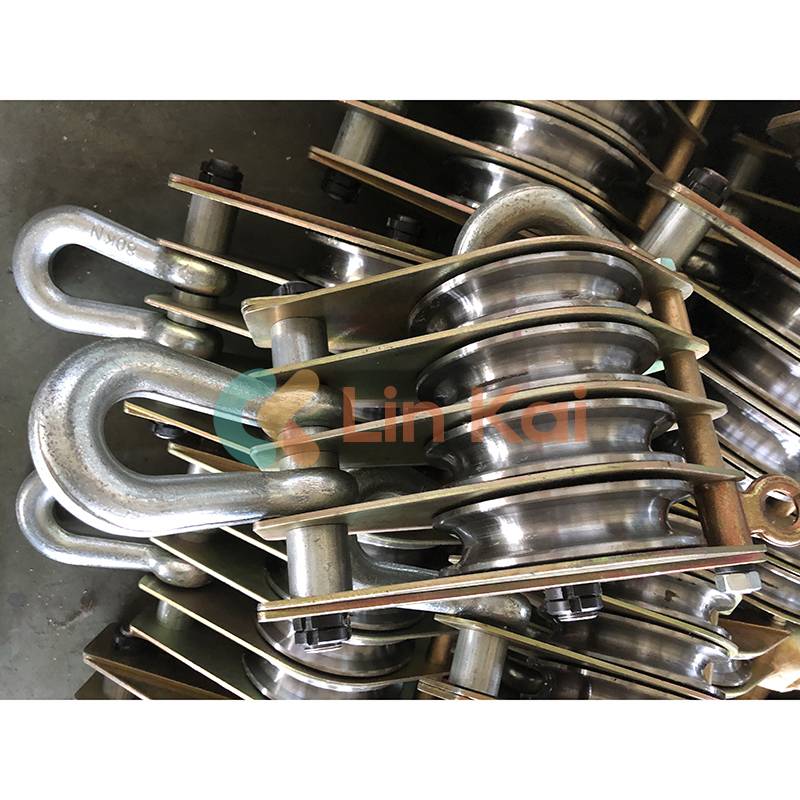

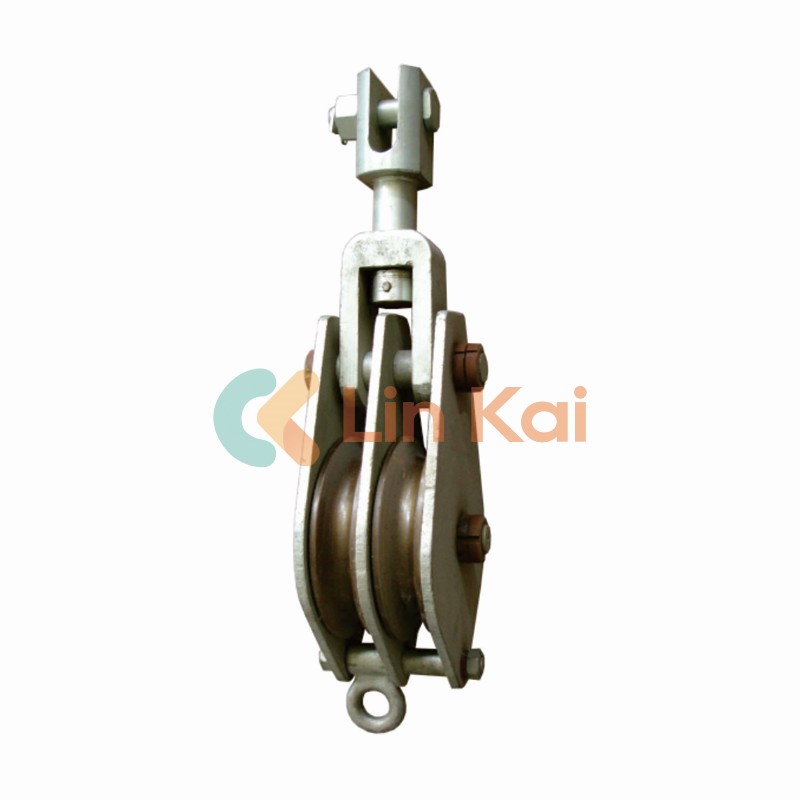

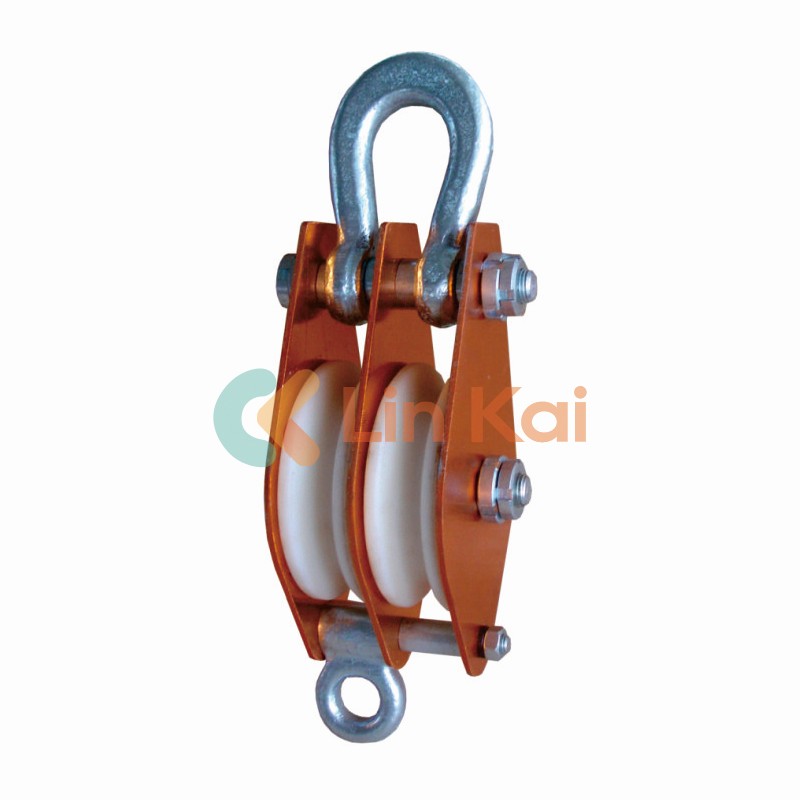

Ningbo Inlokc manufactures hoisting tackle in China with an iron steel pulley, a nylon pulley, an aluminum pulley, and an insulated nylon pulley. The tower erection site is responsible for allowing the pulling steel wire or nylon rope to pass through the groove when elevating the poles. There are three different hanging styles; please specify while placing your purchase. In the meanwhile, we'll provide you with the greatest technical advise.
|
Item number |
Model |
Number of sheaves |
Rated load （kN） |
Roller Dia width (mm) |
MAX. Rope Diameter （mm） |
Weight (kg) |
|
11181 |
QH1x1 |
1 |
10 |
Φ100×31 |
Φ8 |
3 |
|
11182 |
QH1x2 |
2 |
Φ80×27 |
Φ6 |
3 |
|
|
11183 |
QH1x3 |
3 |
Φ80×27 |
Φ6 |
4 |
|
|
11191 |
QH2x1 |
1 |
20 |
Φ120×35 |
Φ10 |
4 |
|
11192 |
QH2x2 |
2 |
Φ100×31 |
Φ8 |
5 |
|
|
11193 |
QH2x3 |
3 |
Φ100×31 |
Φ8 |
6 |
|
|
11201 |
QH3x1 |
1 |
30 |
Φ150×39 |
Φ11 |
6.5 |
|
11202 |
QH3x2 |
2 |
Φ120×35 |
Φ10 |
5 |
|
|
11203 |
QH3x3 |
3 |
Φ100×31 |
Φ8 |
6 |
|
|
11211 |
QH5x1 |
1 |
50 |
Φ166×40 |
Φ13 |
9.0 |
|
1 11212 |
QH5x2 |
2 |
Φ150×39 |
Φ11 |
13 |
|
|
11213 |
QH5x3 |
3 |
Φ120×35 |
Φ10 |
11 |
|
|
11221 |
QH8x1 |
1 |
80 |
Φ205×50 |
Φ18 |
20 |
|
11222 |
QH8x2 |
2 |
Φ166×40 |
Φ13 |
19 |
