China Best MCB Inspection Conveyor Manufacturer?

Choosing the China Best Mcb Inspection Conveyor Manufacturer requires more than comparing prices and catalog photos. A reliable supplier should understand miniature circuit breaker production, inspection accuracy, and continuous factory operation. The right Mcb Inspection Conveyor can check appearance, terminal position, label quality, assembly completeness, and mechanical dimensions. It should also connect smoothly with testing stations and packaging equipment. Small details matter. Guide rails must hold each MCB firmly without scratching its housing. Sensors should detect missing products before they enter the next process.

Experienced manufacturers usually provide layout drawings, sample trials, and documented inspection procedures. Their engineers should explain camera resolution, conveyor speed, reject methods, and data traceability in practical terms. A factory visit or live video audit can reveal important details, including cable routing, spare parts storage, and operator access. Factory acceptance testing is useful, while site acceptance testing confirms real production performance. Ask for measurable results, not only polished promises. No conveyor is perfect. Even a well-designed system may need adjustment when product tolerances change or dust enters the inspection area.

This article outline will examine how to evaluate Chinese suppliers through engineering capability, customization experience, quality control, and after-sales support. It will also discuss lead time, maintenance access, software usability, and integration risks. A dependable manufacturer should welcome technical questions and admit reasonable limitations. That honesty often matters more than impressive marketing language. The best choice is not simply the cheapest machine, but a stable inspection solution that protects product consistency and supports long-term production efficiency.

China Best MCB Inspection Conveyor Manufacturer?
Table of Contents [Hide]
1 What Is an MCB Inspection Conveyor?
2 How MCB Inspection Conveyors Support Circuit Breaker Quality Control
3 Key Features of a Reliable MCB Inspection Conveyor
4 How to Evaluate a China-Based MCB Conveyor Manufacturer
5 Steps for Selecting and Implementing the Right Inspection Conveyor

What Is an MCB Inspection Conveyor?

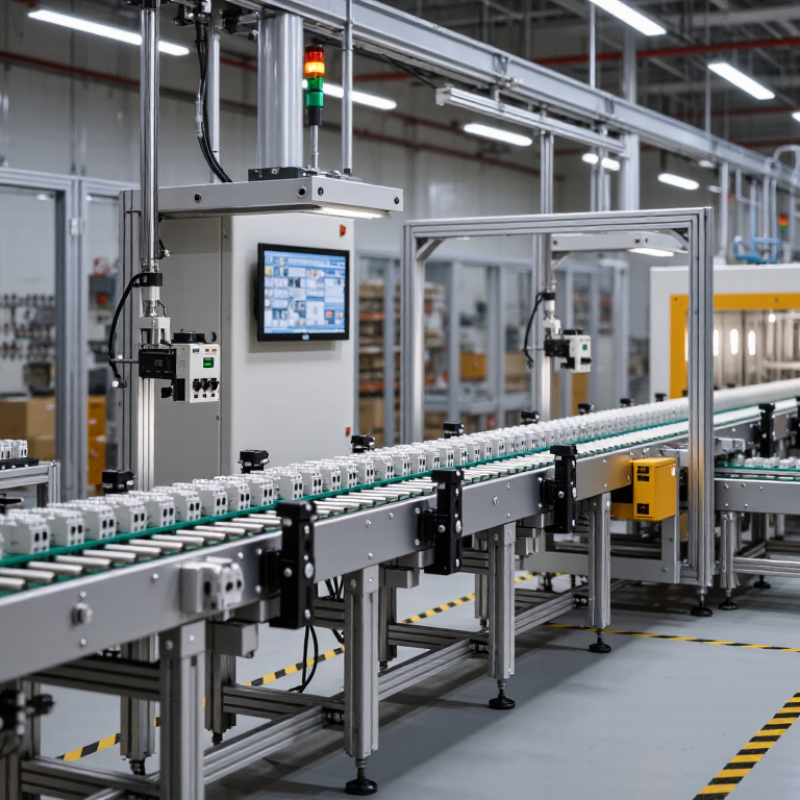

An MCB inspection conveyor is an automated system that moves miniature circuit breakers through controlled inspection stations. It keeps each unit aligned, spaced, and visible for testing. Unlike a simple transport belt, it may combine indexing mechanisms, cameras, sensors, and electrical test modules. The conveyor records inspection results against production data, helping operators locate defects quickly. Typical checks include housing damage, missing components, terminal position, label quality, and switching movement.

In practical use, stable positioning matters greatly. A loose product can shift under a camera and create a false result. Guide rails, adjustable fixtures, and gentle stopping cylinders reduce this risk. Vision sensors examine small details, while presence sensors confirm that every cavity contains an MCB. Some systems also perform continuity, insulation, or mechanical operation tests through controlled contacts. Test limits should follow approved technical requirements and documented quality procedures.

Yet inspection is never flawless. Dust may confuse a camera. Vibration can affect contact testing. An experienced technician should review rejected samples instead of trusting every automatic decision. I would also check lighting, belt tension, sensor alignment, and stored data during routine maintenance. These details seem minor. They are not. A reliable conveyor needs clear rejection logic, guarded moving parts, emergency controls, and repeatable results across different shifts. Its design should match the MCB size, production speed, inspection depth, and available operator skills.

China Best MCB Inspection Conveyor Manufacturer? - What Is an MCB Inspection Conveyor?

Data Dimension Typical Data or Range Inspection or Conveyor Relevance
Equipment Definition Automated conveying and inspection system for miniature circuit breakers (MCBs) Moves MCBs between assembly, testing, visual inspection, rejection, and packing stations.
Typical Product Type Single-pole, two-pole, three-pole, or four-pole MCB assemblies The conveyor fixture should match the product width, pole configuration, and housing geometry.
Common Product Width Approximately 17.5 mm per pole for many modular DIN-rail devices Useful for determining fixture pitch, guide-rail spacing, and multi-pole product handling.
Conveyor Structure Belt conveyor, chain conveyor, indexing conveyor, or custom fixture conveyor Indexing and fixture conveyors generally provide better positioning accuracy for camera and electrical tests.
Usable Conveyor Width Commonly 80–300 mm, depending on product layout and lane quantity Wider conveyors can support multiple lanes, while narrow conveyors reduce footprint and handling distance.
Typical Line Speed Approximately 5–30 m/min for inspection applications Actual speed depends on inspection cycle time, product spacing, indexing distance, and required accuracy.
Indexing Accuracy Typically within approximately ±0.2–0.5 mm when using a dedicated indexing mechanism Stable positioning helps cameras and probes inspect the same product area consistently.
Visual Inspection Items Housing damage, missing components, incorrect assembly, label presence, terminal condition, and lever position Machine vision can identify visible defects and verify product presence or orientation without manual handling.
Dimensional Inspection Overall length, width, height, terminal position, and component alignment Laser sensors, displacement sensors, or cameras can be integrated for non-contact dimensional checks.
Electrical Inspection Continuity, insulation resistance, dielectric withstand, contact resistance, or functional tests The conveyor positions the MCB and transfers it to test probes or dedicated electrical test fixtures.
Barcode or QR-Code Reading Optional fixed-mount or smart-camera code reader Supports product traceability, model verification, production recording, and test-result association.
Product Spacing Commonly 20–100 mm between inspection positions Spacing must prevent product collision and provide sufficient time for image capture and testing.
Reject Handling Pneumatic pusher, servo-driven actuator, diverter, or stop-and-remove mechanism Automatically separates failed MCBs from approved products and can record the rejection reason.
Control System PLC with touchscreen HMI, sensors, motor controller, and safety circuit Provides sequence control, alarm management, recipe selection, speed adjustment, and production statistics.
Detection Sensors Photoelectric sensors, proximity sensors, vision cameras, and encoder feedback Detects product arrival, position, orientation, blockage, and conveyor movement.
Frame Material Powder-coated carbon steel or stainless steel; aluminum profiles may be used for lighter structures Material selection depends on cleanability, corrosion resistance, load requirements, and factory conditions.
Typical Working Height Approximately 750–1,100 mm, adjustable according to the production line The height should align with upstream and downstream equipment and support safe operator access.
Power Supply Common industrial supplies include 220–240 V AC or 380–415 V AC; control circuits often use 24 V DC The final electrical design must match the installation site and comply with applicable local requirements.
Safety Features Emergency-stop buttons, protective covers, interlocked doors, overload protection, and safety sensors Safety functions reduce risks from moving parts, electrical testing, unexpected starts, and product jams.
Data Output Pass/fail results, production count, rejection count, alarm history, and traceability records Data can support quality analysis, process improvement, maintenance planning, and production reporting.
Selection Criteria Product dimensions, required throughput, inspection items, accuracy, layout, integration, and safety requirements A suitable conveyor is normally designed around the MCB model range and the complete production process.

How MCB Inspection Conveyors Support Circuit Breaker Quality Control

China Best MCB Inspection Conveyor Manufacturer?

How MCB Inspection Conveyors Support Circuit Breaker Quality Control

In a modern circuit breaker line, inspection conveyors do more than move products. They control position, spacing, and inspection timing. A stable conveyor presents each miniature circuit breaker (MCB) to cameras, sensors, and testing stations consistently. This reduces missed images caused by vibration or irregular loading. It also gives operators a clear view of rejected units.

Quality control begins with repeatable handling. Adjustable guides keep housings aligned as they travel through electrical and mechanical checks. Sensors can detect missing components, incorrect assembly, damaged terminals, or inconsistent markings. Encoders track conveyor movement, helping inspection software connect each result with the correct unit. If a defect appears, an automatic diverter can separate the product without interrupting the main flow.

Small details matter. Smooth transfer plates prevent parts from tipping. Gentle acceleration protects loose accessories and reduces surface scratches. Stainless steel frames support easier cleaning near production areas. Guards and emergency stops should be accessible, tested, and documented by trained personnel. In practice, no conveyor removes every risk. Dust, poor calibration, and rushed maintenance still create false rejects. Technicians should review image records, sensor performance, and rejected samples regularly. A practical design leaves room for adjustment, because real production conditions rarely remain perfect.

MCB Inspection Conveyor: Instantaneous Trip-Current Quality Control

IEC 60898-1 reference bands for the instantaneous magnetic trip response of B, C, and D curve miniature circuit breakers.

During automated conveyor inspection, each MCB can be routed through electrical test stations to verify that its instantaneous trip current falls within the applicable curve range. The values are expressed as multiples of the rated current (In): B curve 3–5 In, C curve 5–10 In, and D curve 10–20 In.

Key Features of a Reliable MCB Inspection Conveyor

A reliable MCB inspection conveyor must control product movement before measurement begins. Stable indexing keeps each miniature circuit breaker in the correct position. Small errors matter.

The conveyor should combine adjustable guides, precision fixtures, and consistent belt tension. These features prevent tilted components from entering the inspection area. A vision system can check housing damage, terminal position, markings, and assembly completeness.

Sensors should confirm product presence and trigger each inspection at the correct moment. Clear reject mechanisms separate failed units without disturbing accepted products. Gentle handling is essential because terminals can bend under uneven pressure.

A practical conveyor also needs accessible controls and simple recipe changes. Operators should adjust speed, spacing, and inspection timing without lengthy downtime. Protective guarding improves workplace safety and shields cameras from dust. ESD control may be necessary when sensitive electrical parts are handled. Data collection adds value by recording inspection results, fault types, and production times. These records support process improvement and make supplier quality discussions more objective.

In real factory use, even a well-designed system requires calibration. Fixtures may wear, sensors may shift, and lighting can change after maintenance. No conveyor is perfect. Reliable manufacturers provide test procedures, spare-part access, and clear maintenance guidance. Before purchase, buyers should request sample trials using actual MCB models. A conveyor that performs well with one size may struggle after a product change. Careful validation is more convincing than impressive specifications.

How to Evaluate a China-Based MCB Conveyor Manufacturer

China Best MCB Inspection Conveyor Manufacturer?

How to Evaluate a China-Based MCB Conveyor Manufacturer

Evaluating a China-based MCB conveyor manufacturer requires more than comparing quotations. Start with the product and process. Ask for a running video showing feeding, indexing, inspection, and rejection. Check whether the system handles your breaker sizes without frequent manual adjustment. Small details matter. Confirm the conveyor’s pitch accuracy, sensor stability, and cycle-time performance under continuous operation.

Request a sample run using your actual MCB housings and terminals. Measure alignment at each station, not only the final output. Review vision inspection records, fault alarms, and data storage methods. Ask how operators change tooling and recover after a jam. A capable engineering team should explain tolerances in practical terms. Do not accept vague promises. Production speed means little when false rejects increase.

Factory capability also includes documentation and support. Examine electrical drawings, spare-parts lists, maintenance instructions, and acceptance-test procedures. Clarify installation training, remote troubleshooting, and response times before placing an order. Visit the workshop if possible. Observe wiring quality, machining accuracy, component labeling, and unfinished assembly areas. A polished factory tour can still hide weak process control. I once considered appearance too heavily; that was a poor evaluation habit. Require measurable results, written responsibilities, and a realistic improvement plan after testing.

Steps for Selecting and Implementing the Right Inspection Conveyor

Selecting the right MCB inspection conveyor starts with the product, not the machine. Define breaker dimensions, terminal positions, rated throughput, and inspection tolerances. A 2D camera may verify housing marks, while electrical tests need stable clamping and controlled contact pressure. According to the MarketsandMarkets Machine Vision Market report, the sector may grow from about USD 20.9 billion in 2023 to USD 33.5 billion by 2028. That growth reflects stronger demand for measurable, automated quality checks.

Ask the manufacturer for a sample-run trial. Feed real MCBs, including scratched housings, mixed batches, and slightly misaligned parts. Check lighting stability, reject timing, sensor repeatability, and data storage. The conveyor should stop accurately beneath each camera, without damaging terminals or labels. ISO 9001-based procedures can support calibration records, operator training, and corrective actions. Traceability also matters; each failed unit should connect to a timestamp, recipe, and image.

Implementation needs practical detail. Leave access around cameras and test stations for cleaning and replacement. Confirm line speed after testing, not only during an empty-belt demonstration. The International Federation of Robotics reported 541,302 industrial robots installed worldwide in 2023, showing how quickly automated production is expanding. Yet more automation does not guarantee better inspection. A perfect first design is unlikely. We would revisit false rejects after two weeks, because a clean laboratory result can hide real production variation. Test the uncomfortable cases. That is where the conveyor proves its value.
